Cycles

Like in all ecosystems, biological cycles will occur in your tank. These cycles help organisms live in happy cohabitation!

Why are cycles important?

Cycles are important because they maintain homeostasis in a system. Homeostasis is the ability for an organism or system to maintain internal equilibrium. In your tank you have chemical and biological equilibriums.

What cycles are in my tank?

The cycles in your tank include:

• The Food Web
• Photosynthesis/Respiration
• The Nitrogen Cycle

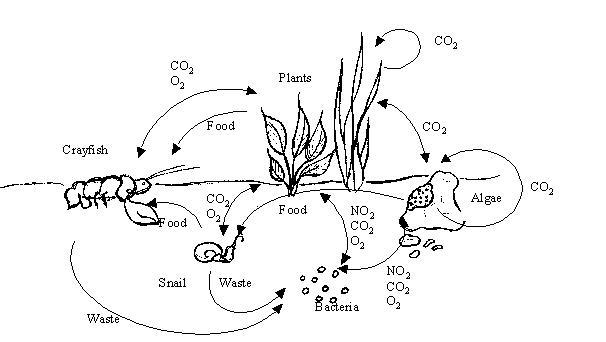

The above picture is a representation of all the major cycles that are occurring within the crayfish environment. For instance, the food chain is exhibited, with the arrow pointing to the crayfish from the plant and the snail. The photosynthesis and respiration cycles are represented by the plants taking in the carbon dioxide produced by the organisms and the organisms consuming the oxygen produced by the plants. The nitrogen cycle is represented by the snail and the crayfish giving off waste, which is consumed by the bacteria and turned into NO2 which is consumed by the plants.

back to the top

The Food Web

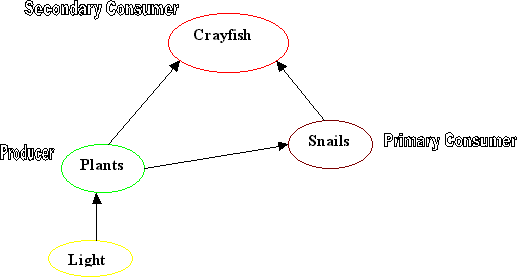

Food webs occur in all natural environments and describe the interaction of the plants and animals living in the ecosystem. They show how food and energy move between them. At least three levels exist in all food webs including producers, primary consumers and secondary consumers. More levels can exist as the web becomes more complex from the addition of higher consumers.

Producers

Producers are organisms that get their energy from sunlight and convert it to useable energy via photosynthesis. In your tank, the producers include the plants and algae.

Primary Consumers

Primary consumers get their energy by consuming the producers and no other consumers. They are strictly vegetarians! Snails and any other small plant eating animals in your tank make up this group.

Secondary Consumers

Secondary consumers get their energy from consuming both producers and primary consumers. Like us, they like to eat both meat and plants. The crayfish are your secondary consumers because they eat plants, algae, small animals and sometimes even each other!

back to the top

Photosynthesis & Respiration

Photosynthesis is the light induced process by which green plants produce oxygen from carbon dioxide.

In the aquarium, carbon dioxide produced by the crayfish and aerobic bacteria, is dissolved in the water. During photosynthesis, the carbon dioxide is taken inside the plant and converted into simple sugars. This synthesis reaction can be written chemically in the equation:

6CO₂  + 6H₂O      C₆H₁₂O₆  +  6O₂

 Carbon     Water              Sugar       Oxygen
 Dioxide

Several factors influence the rate at which photosynthesis occurs in aquatic plants. The rate increases as the light intensity increases, as the water temperature increases, and in the presence of high concentrations of carbon dioxide. It is important to select plants that will survive within the aquarium temperature and light constraints.

Respiration is the process by which plants and animals convert the energy stored in food into useable forms of energy, such as heat. Living cells in aquatic organisms use the dissolved oxygen in the water to convert sugars into heat. Chemically, respiration is the reverse of photosynthesis

C₆H₁₂O₆  +   6O₂     6CO₂   +  6H₂O

     Sugar + Oxygen   Carbon Dioxide & Water

back to the top

The Nitrogen Cycle

Nitrogen exists in the environment, and your tank, in several forms and is continuously converted between these forms via the nitrogen cycle. These forms are: nitrate (NO₃), nitrite (NO₂) and ammonia (NH₃).

A simple breakdown of the cycle is:

• Plant and animal wastes and dead plants and animals decompose adding nitrogen to the soil (or water) as ammonia.
• The bacteria in the soil (or on the gravel) then convert these forms to forms that plants can use.
• The plants then use the nitrogen to grow.
• Animals (the crayfish and snails) eat the plants and the plant and animal residues return to the soil (or water) again completing the cycle.

Ammonia is toxic to the crayfish at high concentrations so it is important that it never reaches high levels. That is why it is so important to have a good bacterial population in your tank. The bacteria will convert the ammonia into nitrite and then to nitrate thereby reducing it's toxicity by a process called nitrification.

What is nitrification?

Nitrification involves two bacterial species: Nitrosospira bacteria, which oxidizes ammonia to nitrite, a slightly less toxic form of Nitrogen, and Nitrobacter bacteria, which converts nitrite to nitrate, a form of nitrogen that is much less toxic then either of the other two forms. Both species utilize energy released by the reactions. This complex series of reactions can be summarized in chemist shorthand as:

Nitrosospira:

55NH₄⁺+ 76 O₂ + 109HCO₃^-à C₅H₇O₂N + 54NO₂^-+ 57H₂O + 104H₂CO₃

Nitrobacter

400NO₂^- + NH₄⁺ + 4H₂CO₃ + HCO₃^- + 195 O₂ à C₅H₇O₂N + 3H₂O + 400 NO₃

How do I know if my bacterial populations are healthy?

Nitrate, nitrate, ammonia and dissolved oxygen levels are good indicators of how the bacterial processes are functioning. Since nitrite is highly toxic when in an ecosystem its ideal level remains approximately at 4 mg/L. Nitrate levels are not as critical, and are ideally no higher than 60 mg/L. Ammonia levels should not rise above 2 mg/L. Since both of the bacteria use oxygen in this process a good level of dissolved oxygen is needed. Dissolved oxygen levels around seven or eight mg/L are ideal, and levels at or below two are cause for concern.

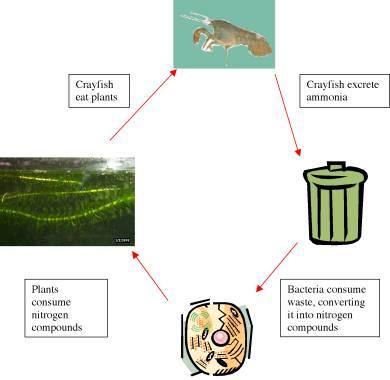

A simplified sketch of the nitrogen cycle is shown here:
